Dockerfile .NET on Ubuntu

Running non-Docker .dotnet on Ubuntu first.

Simply dotnet + name of dll should work but failed in my case.

Gotchas:

(Non-docker dotnet): When trying to directly use donet with DLLs on Ubuntu got apt packages mixed-up on 22.04

Here is ther fix: https://stackoverflow.com/questions/73753672/a-fatal-error-occurred-the-folder-usr-share-dotnet-host-fxr-does-not-exist

Dockerized Windows dotnet:

1. example from AZ-204: Implement containerized solutions > Manage container images in Azure Container Registry > Explore elements of a Dockerfile

2. my example: https://github.com/wkaczurba/BasicDotnet/commit/52b553041fb2a5d885d3ff227568837e4e328a75

Running Gotchas on Ubuntu:

• had issues exposing port 80. docker run -p 80:80 dotnetapp did not run first, so check netstat first.s

Azure Container Registry (ACR)

Setting up ACR

Just create. SKUs: standard seems ok. Premium allows private access only + CMK encryption.

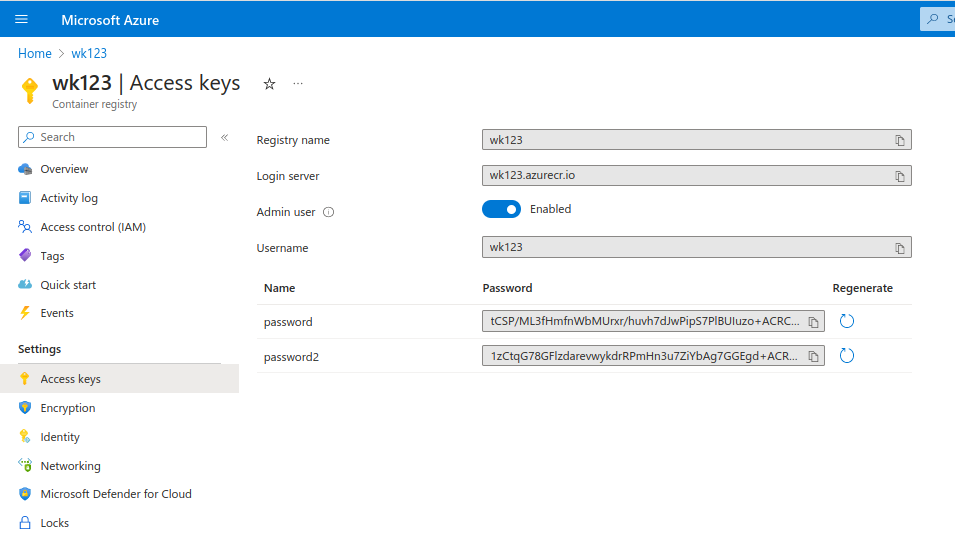

Enable admin access

Pushing into ACR

Logging-in

Make sure az command line is installed.

This one should be sufficient to log-in with OAuth:

• az login
• az acr login --name <NAME OF ACR container registry.>

Alternatively:

• az acr login --name wk123 --user wk123 --password IEDQZC+4mCSYX3HbEpda5/ABFgjg...rR+A...mmh

Tagging + pushing:

docker tag dotnetapp wk123.azurecr.io/dotnetapp
docker push wk123.azurecr.io/dotnetapp

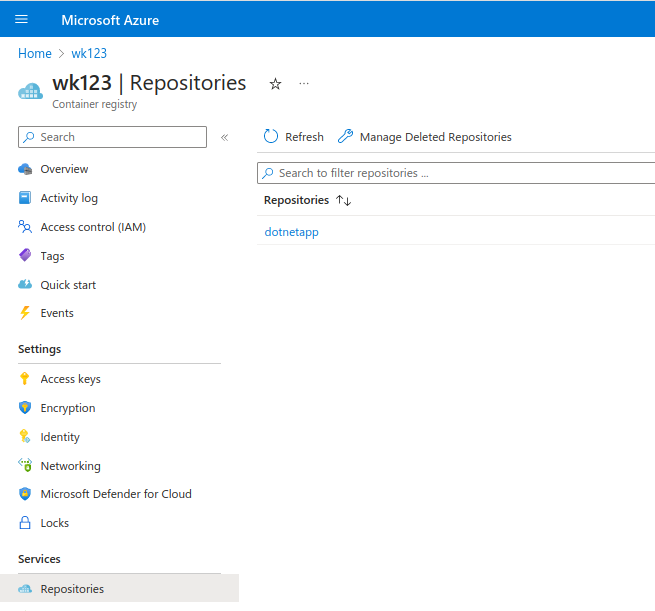

where wk123 is repo’s name. Voila:

Permissions

Good description of permissions is here Azure Container Registry roles and permissions.

Particularly interesting role is AcrPush that allows just for pushing/pulling images.

Azure Instances

Creating Azure Instance:

Options for Image source:

• Quickstart images
• Azure Container Registry
• Other registry

Networking:

• public (with public IP)
• private (not working on Windows containers)
• none (cmd line acces only)

Advanced:

• Restart policies (eg. on fail, never, always)
• Env vars, key managment

Just start…

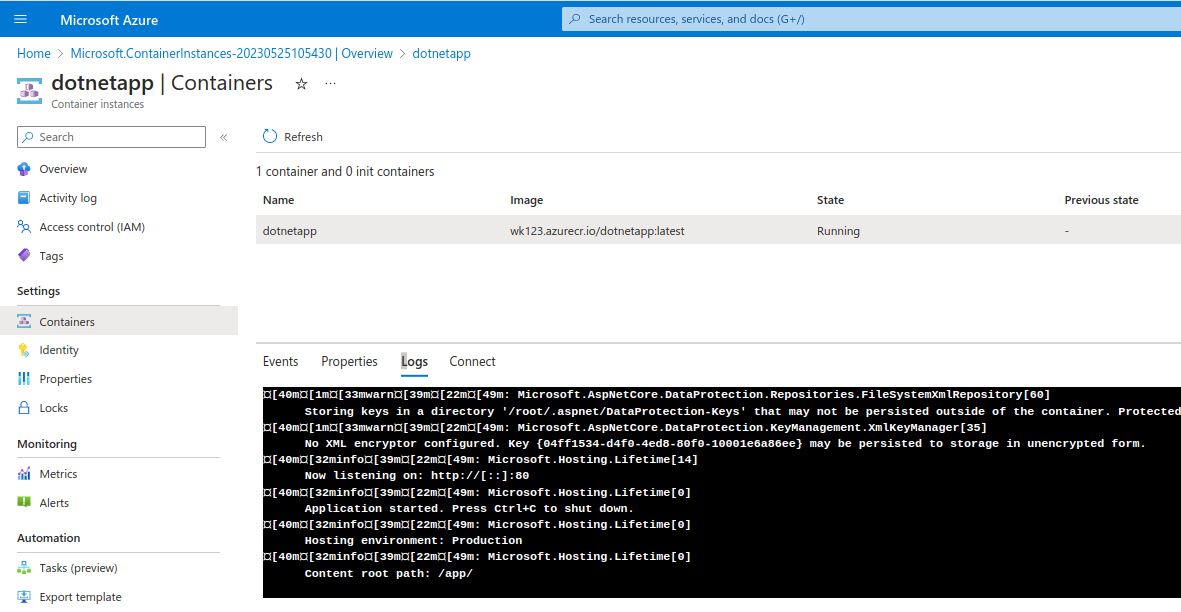

LOGS are in Settings blade -> Containers -> [Container-name] -> Logs:

Docker - multistage build for dotnet.

Docker + dotnet: https://hub.docker.com/_/microsoft-dotnet

Single-stage:

FROM mcr.microsoft.com/dotnet/aspnet:6.0
WORKDIR /app
COPY . .
EXPOSE 80
ENTRYPOINT ["dotnet", "BasicDotnet.dll"]

Multi-stage:

My working example:

• https://github.com/wkaczurba/BasicDotnet/commit/f14a4d35426b706a2ab33434995e3e62efa05a6b

FROM mcr.microsoft.com/dotnet/sdk:6.0 as build
WORKDIR /source

COPY *.csproj ./
RUN dotnet restore

COPY . .
RUN dotnet publish -c Release -o out

# final stage/image
FROM mcr.microsoft.com/dotnet/aspnet:6.0
WORKDIR /app
COPY --from=build /source/out .
EXPOSE 80
ENTRYPOINT ["dotnet", "BasicDotnet.dll"]

Container group deployments

UDEMY: https://www.udemy.com/course/azure-certification-1/learn/lecture/31939138#overview

Microsoft docs/tutorial:

Tested and followed this one - all easy steps:

• https://learn.microsoft.com/en-us/azure/container-instances/container-instances-multi-container-yaml

• Simply az container create --resource-group may25th --file deploy-aci.yaml

Blobs - lifecycle policy JSON:

• blobs: lifecycle policy json like - “tierToCool”, “delete”, - [examples] (Lifecycle management policy definition)

• “enableAutoTierToHotFromCool” https://learn.microsoft.com/en-us/dotnet/api/microsoft.azure.management.storage.models.managementpolicybaseblob.enableautotiertohotfromcool?view=azure-dotnet

  • moves to hot on accessing it, but also requires the other way: tierToCool.daysAfterLastAccessTimeGreaterThan…

Conditional headers for blob-service operations

You can specified what file you expect to get by supplying additional request headers like:

• If-Modified-Since + DateTime value (as per RFC1123)
• If-Match an etag value https://docs.microsoft.com/en-us/rest/api/storageservices/specifying-conditional-headers-for-blob-service-operations

Time0based retention policies for immutable blob data

https://learn.microsoft.com/en-us/azure/storage/blobs/immutable-time-based-retention-policy-overview

• the idea is that we enable immutability +set the time-basewd retention policy scope (version-level policy or container-level policy
• and object immutability…

• A time-based retention policy stores blob data in a Write-Once, Read-Many (WORM) format for a specified interval. When a time-based retention policy is set, clients can create and read blobs, but can’t modify or delete them. After the retention interval has expired, blobs can be deleted but not overwritten.

## Immutable leagl hold - overview

https://learn.microsoft.com/en-us/azure/storage/blobs/immutable-legal-hold-overview
